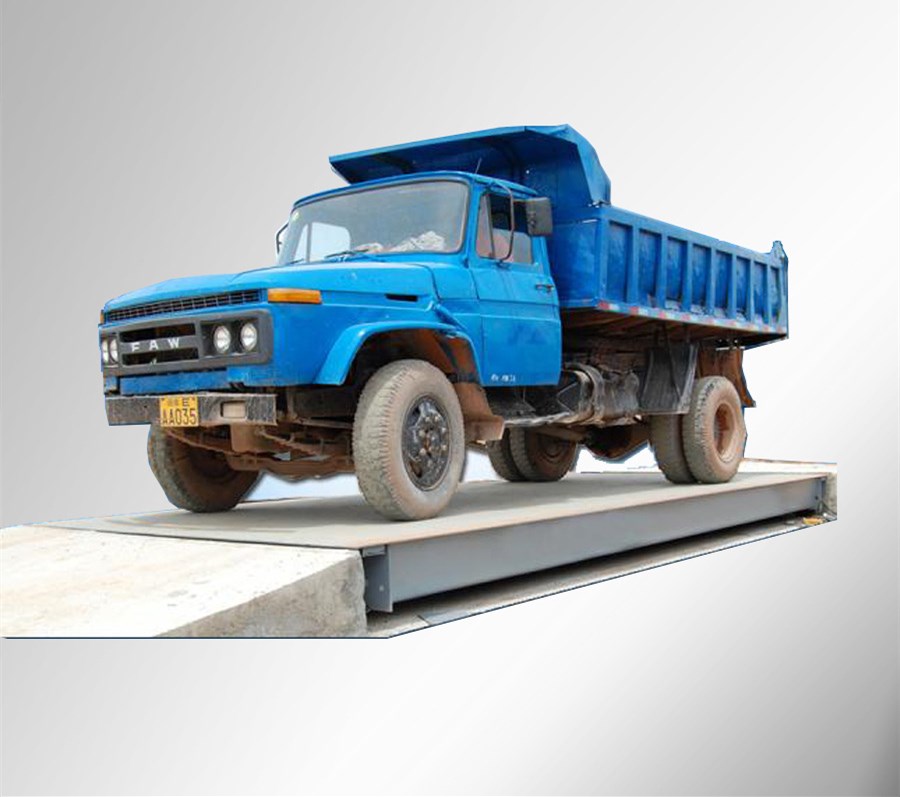

Low Profile Truck Scale
Low Profile Truck Scale
2. Fast and economical installation, even in restricted sites
3. Convenient access
4. No exposed wiring
5. Low profile
6. Full capacity test weights calibration for weighbridge before leaving the factory
Specification | Description |
Standard lengths | 6m;8m;9m;10m;12m;14m;16m;18m;20m;22m;24m |
Standard widths | 3m;3.4m |
Standard capacity | 30t,40t,50t,60t,80t,100t,120t |
Custom sizes | Call us for more information on your custom application. |

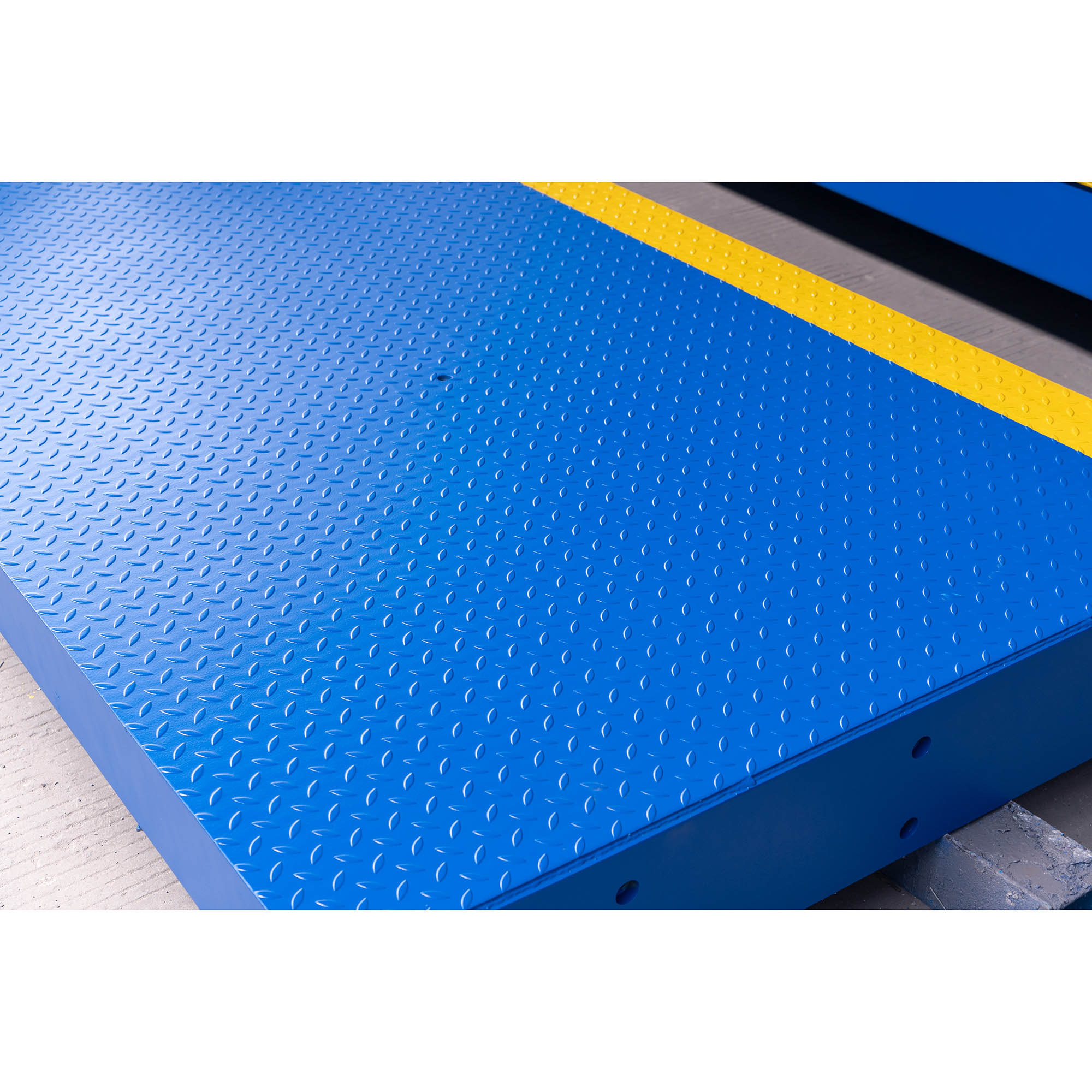

Deck surface | Mild Steel |
Thickness of Deck surface | 8+2mm or 10+2mm checker plate or 10mm/12mm/14mm plain plate |

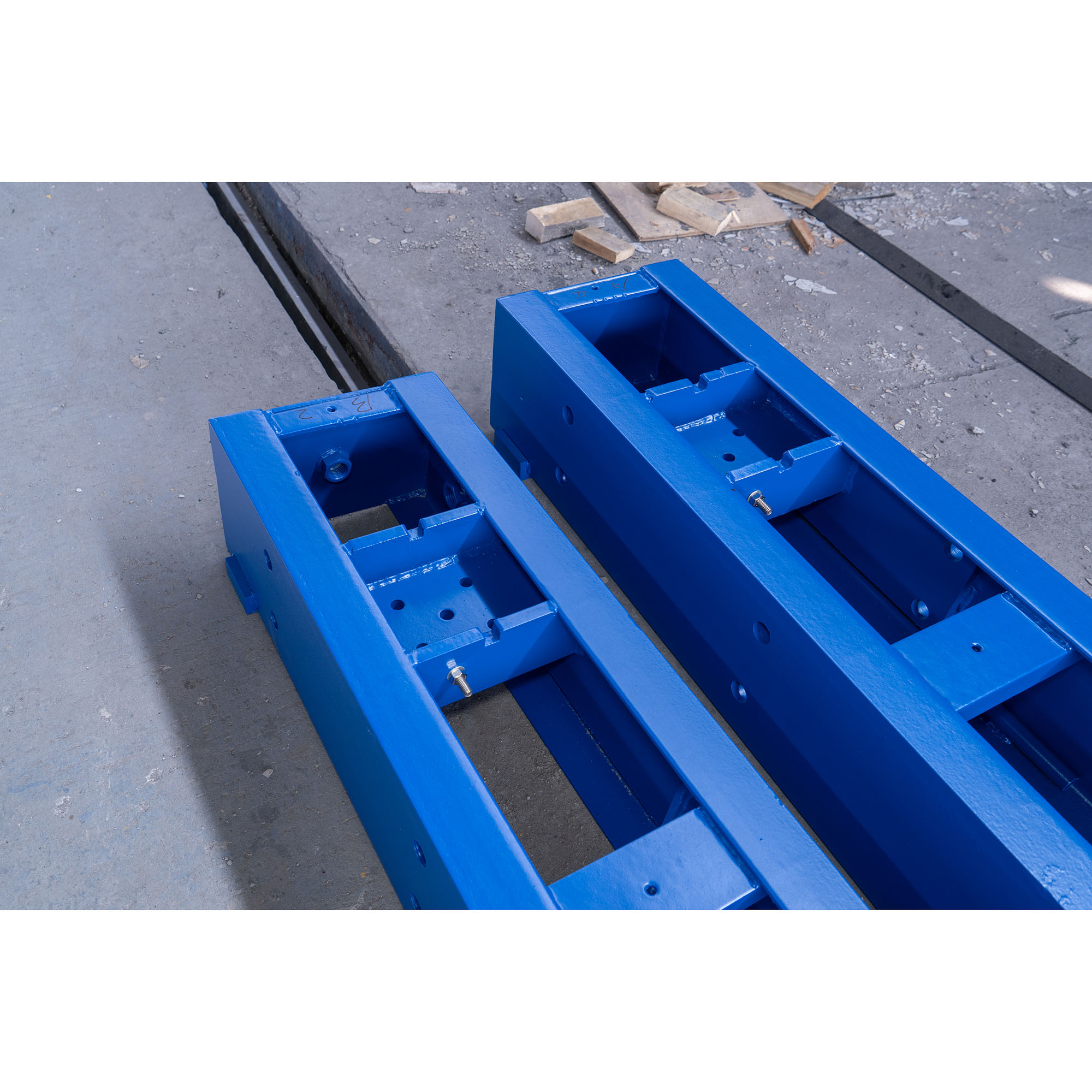

U beam quantity | 8pcs |
Paint specification | 2 Base coats, 1 zinc epoxy, 1 surface protection coat |
Weighbridge structure Warranty | 2-Years |
Indicator Brand | KELI,YAOHUA etc |
Indicator Model | XK3118K5,D2008H,XK3190-A12,XK3190-A9,XK3190-DS1 |
Load cell Brand | KELI ,ZEMIC etc |
Load cell Model | HM9B-30T/BM14G-30T/QS-30T/ZSFY-ASS-30T |
Indicator and Load cell warranty | 1-Year |
Lighting protection | Earth spikes, clear line filter, tailbacks and loops with load cell input and output surge arrestors. |
Stainless steel junction box | Keli Stainless steel IP65 |
